Top speed
KMS MOTO / T2
T2-48-MX
Electric off-road model. Confirm specifications and availability with KMS MOTOR.
Price on requestKMS MOTO
02 / THE MACHINE
LOOK CLOSER.

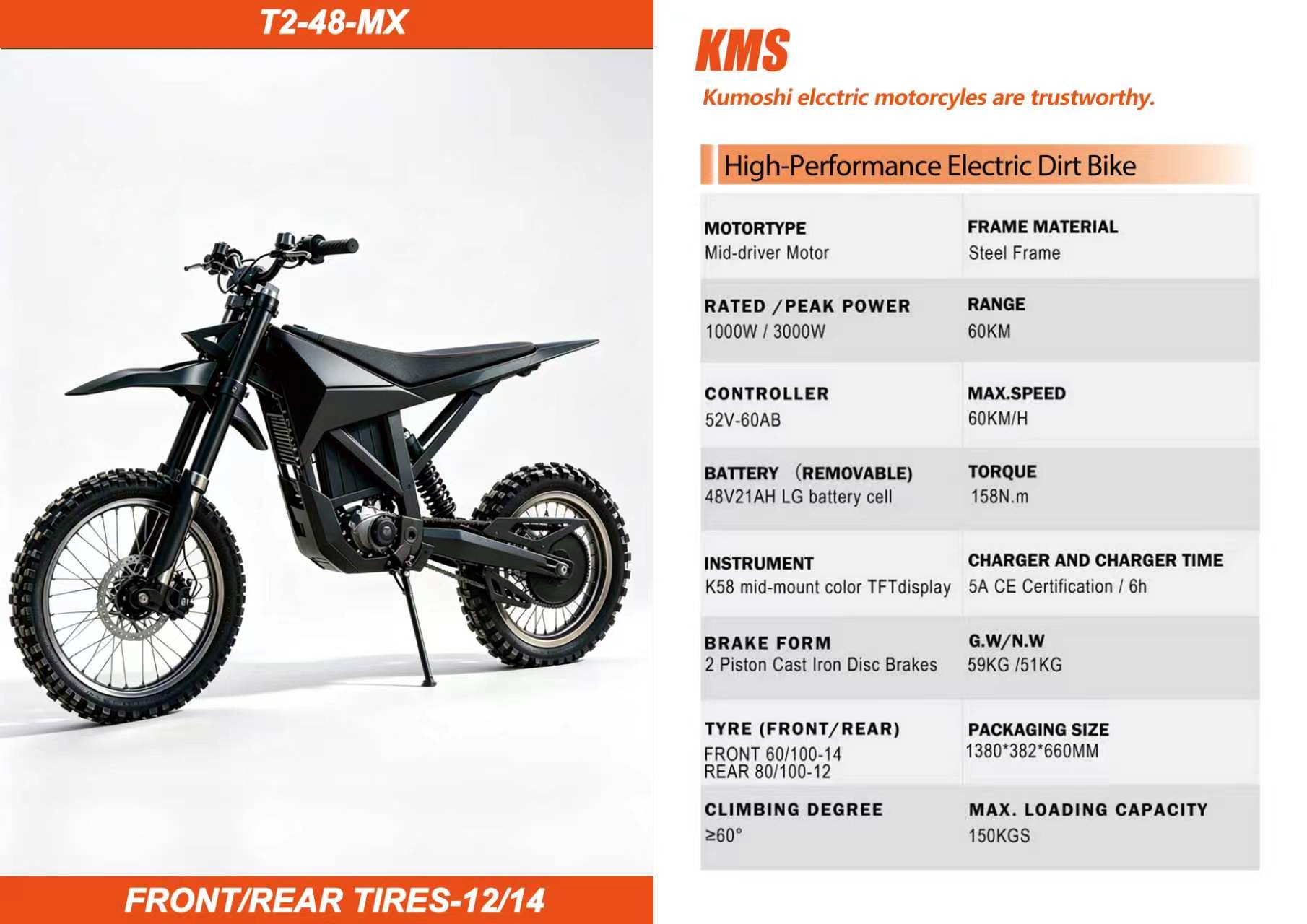

Explore the published product views
03 / THE NUMBERS · T2-48-MX
PERFORMANCE
IN BLACK & WHITE.
Peak power
Range
Battery voltage
Specifications may vary by market and configuration. Contact KMS for the final order specification.
04 / UNDER THE SURFACE
THE MACHINE,
EXPLAINED.
01
Battery
- Battery
- 48 V 21 Ah, LG cells, removable
- Charger
- 5A
- Charging Time
- 6 h
02
Motor
- Motor
- Mid-drive
- Rated Power
- 1,000 W
- Peak Power
- 3,000 W
- Torque
- 158 N·m
- Controller
- 52 V / 60 AB
03
Brakes
- Brake System
- Two-piston cast iron disc brakes
04
Frame
- Frame
- Steel
05
Dimensions
- Net Weight
- 51
- Gross Weight
- 59 kg

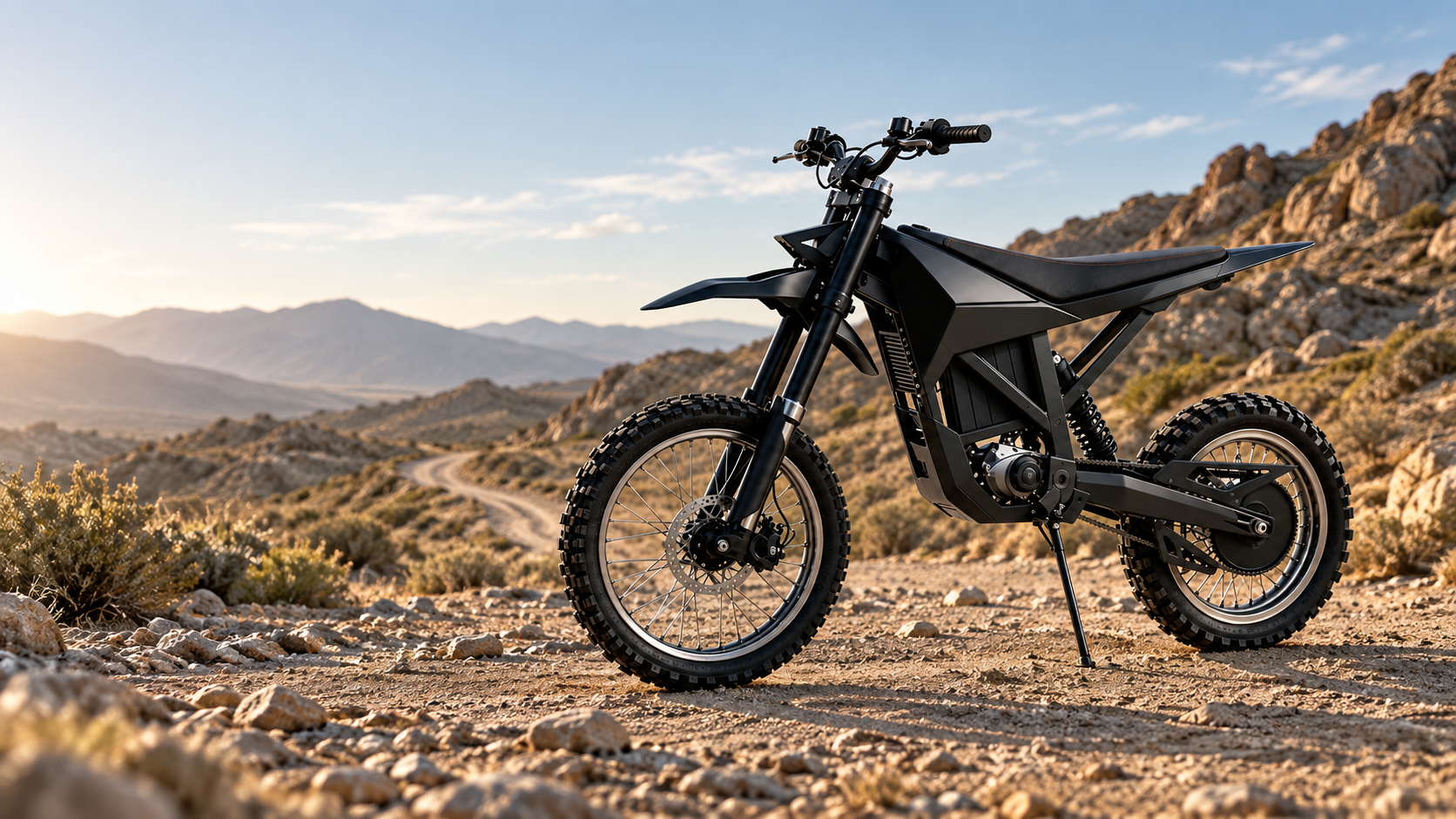

05 / PRODUCT GALLERY
EVERY ANGLE
MATTERS.

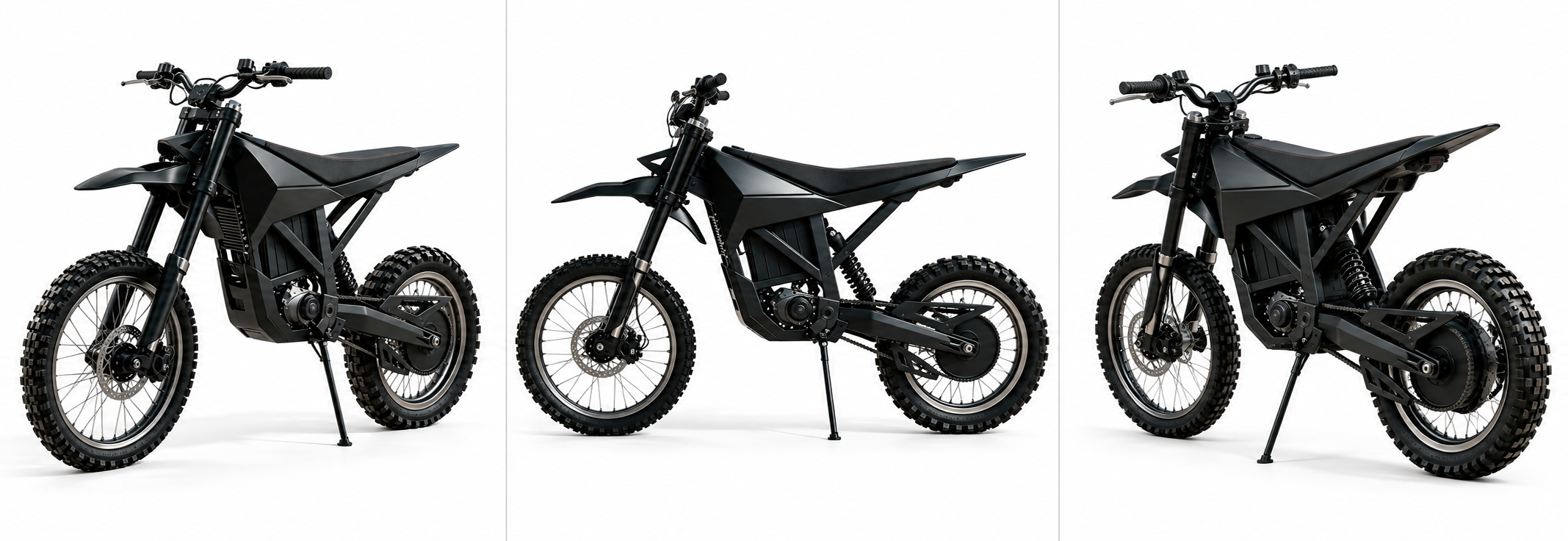

06 / ANGLE STUDIES
SHAPE & STANCE.
07 / THE DETAILS
FULL
SPECIFICATIONS.
Performance+
- Motor
- Mid-drive
- Rated Power
- 1,000 W
- Peak Power
- 3,000 W
- Range
- 60 km
- Top Speed
- 60 km/h
- Torque
- 158 N·m
- Controller
- 52 V / 60 AB
Chassis+
- Frame
- Steel
Battery+
- Battery
- 48 V 21 Ah, LG cells, removable
- Charger
- 5A
- Charging Time
- 6 h
Features+
- Display
- K58 mid-mount color TFT
Brakes+
- Brake System
- Two-piston cast iron disc brakes
Dimensions+
- Net Weight
- 51
- Gross Weight
- 59 kg
- Front Tire
- 60
- Rear Tire
- 100-14
- Packing size
- 1,380 × 382 × 660 mm
- Maximum load
- 150 kg
Specifications can vary by market and configuration. Contact KMS for the final order specification.
