Maximum speed
Price on requestKMS MOTOR
02 / THE MACHINE
LOOK CLOSER.
Explore the published product views
03 / THE NUMBERS · LX-60-MY
PERFORMANCE
IN BLACK & WHITE.
Peak power
Range · source sheet
Battery voltage
Specifications reproduced from supplied source sheets. Confirm test conditions and availability before purchase.
04 / UNDER THE SURFACE
THE MACHINE,
EXPLAINED.
01
Battery
- Battery
- 60 V 27 Ah LG battery cells, removable
- Charging
- 5 A / 6 h (CE mark shown on brochure)
02
Motor
- Motor
- Mid-drive motor
- Rated power
- 1500 W
- Peak power
- 6000 W
- Torque
- 188 N·m
- Controller
- 52 V / 60 AB
03
Brakes
- Brakes
- 2-piston cast-iron disc brakes
04
Frame
- Frame
- Steel
05
Dimensions
- Tyres (front / rear)
- 70/100-17 / 90/100-14
- Net / gross weight
- 62 / 70 kg
- Packing size
- 1350 × 382 × 660 mm
- Maximum load
- 150 kg
05 / PRODUCT GALLERY
EVERY ANGLE
MATTERS.
07 / THE DETAILS
FULL
SPECIFICATIONS.
Performance+
- Motor
- Mid-drive motor
- Rated power
- 1500 W
- Peak power
- 6000 W
- Maximum speed
- 60 km/h
- Range
- 60 km
- Torque
- 188 N·m
- Controller
- 52 V / 60 AB
- Climbing degree
- ≥60°
Battery+
- Battery
- 60 V 27 Ah LG battery cells, removable
- Charging
- 5 A / 6 h (CE mark shown on brochure)
Chassis+
- Frame
- Steel
- Brakes
- 2-piston cast-iron disc brakes
Features+
- Instrument
- K58 mid-mount color TFT display
Dimensions+
- Tyres (front / rear)
- 70/100-17 / 90/100-14
- Net / gross weight
- 62 / 70 kg
- Packing size
- 1350 × 382 × 660 mm
- Maximum load
- 150 kg
Published source-sheet values require final product-team confirmation; specifications can vary by market and version.

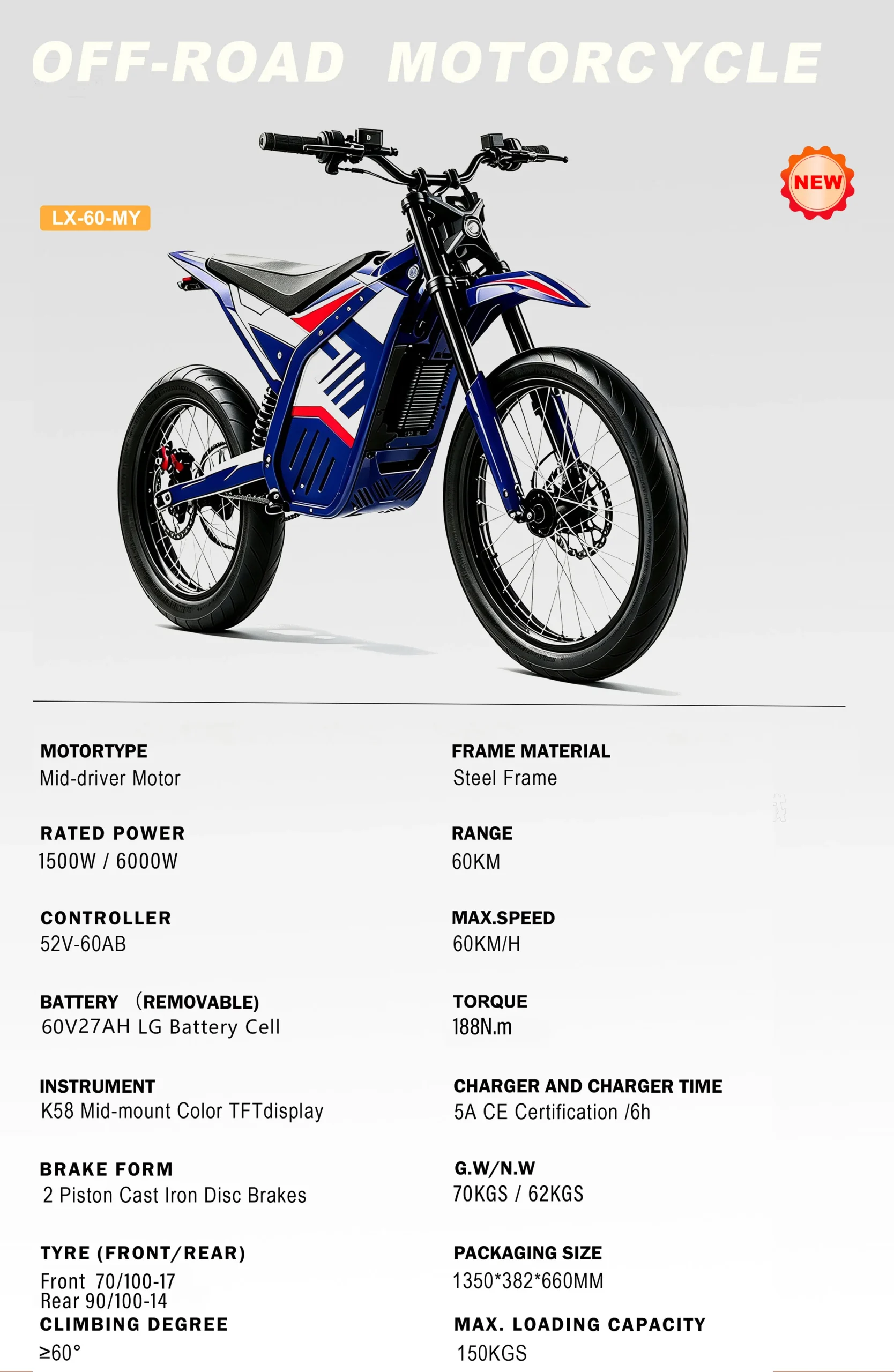

SOURCE MATERIALS
ORIGINAL SHEETS.
Reference images supplied for this SKU; confirm values before commercial use.
