Maximum speed
KMS MOTOR / K2
K2-72-LZ

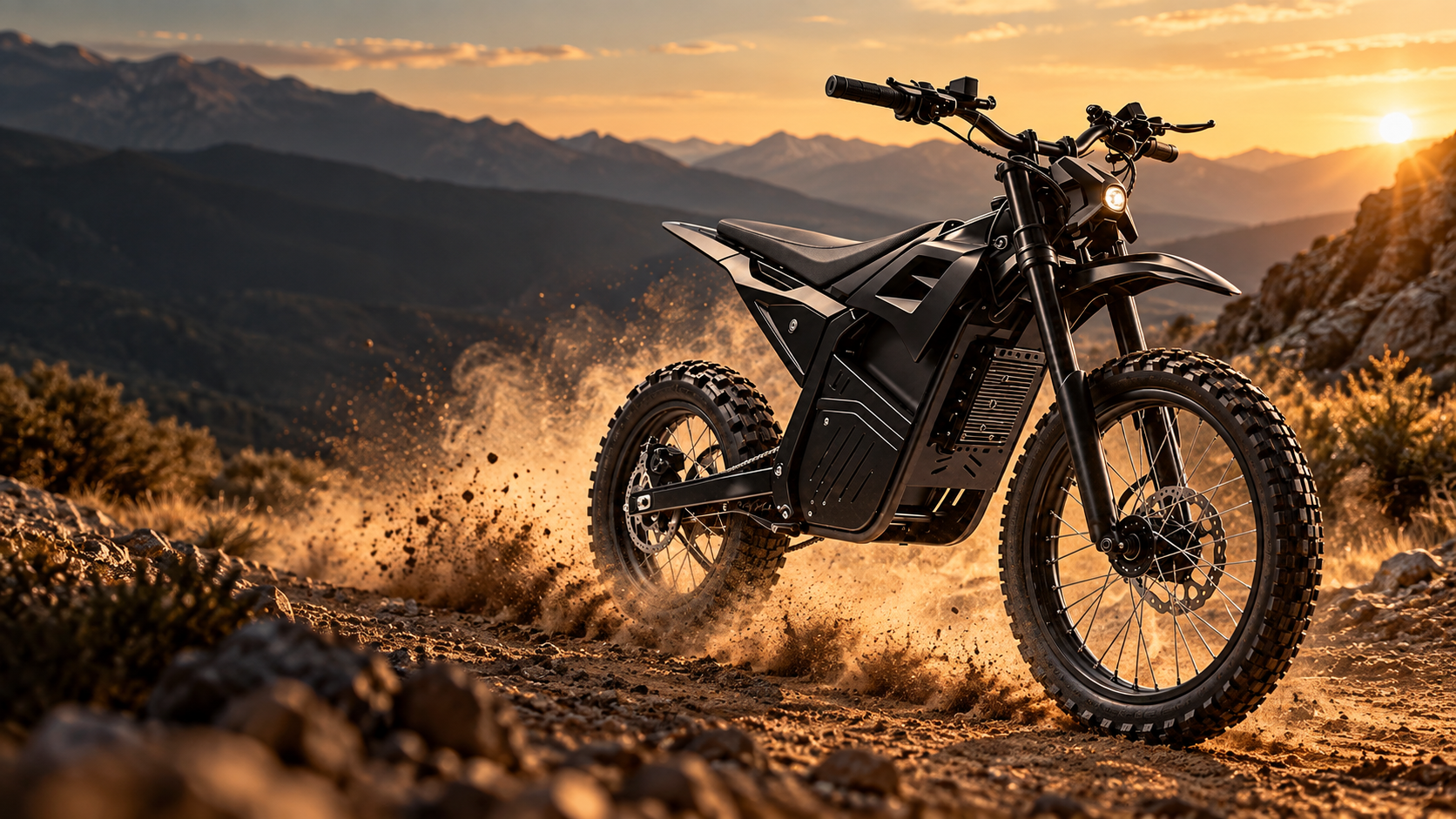

Electric off-road model. Confirm specifications and availability with KMS MOTOR.
Price on requestKMS MOTOR
02 / THE MACHINE
LOOK CLOSER.
Explore the published product views
03 / THE NUMBERS · K2-72-LZ
PERFORMANCE
IN BLACK & WHITE.
Peak power
Range · source sheet
Battery voltage
Specifications reproduced from supplied source sheets. Confirm test conditions and availability before purchase.
04 / UNDER THE SURFACE
THE MACHINE,
EXPLAINED.
01
Battery
- Battery
- 72 V 27 Ah, LG cells, removable
- Charging
- 5A / 6 h (CE mark shown on source sheet)
02
Motor
- Motor
- Mid-drive
- Rated / peak power
- 2,000 W / 6,000 W
- Torque
- 227 N·m
- Controller
- 52 V / 80 AB
03
Brakes
- Brakes
- Two-piston cast iron disc brakes
04
Dimensions
- Net / gross weight
- 65 / 75 kg
- Tyres (front / rear)
- 70/100-19 / 90/100-17
- Packing size
- 1,520 × 382 × 760 mm
- Maximum load
- 150 kg
05 / PRODUCT GALLERY
EVERY ANGLE
MATTERS.

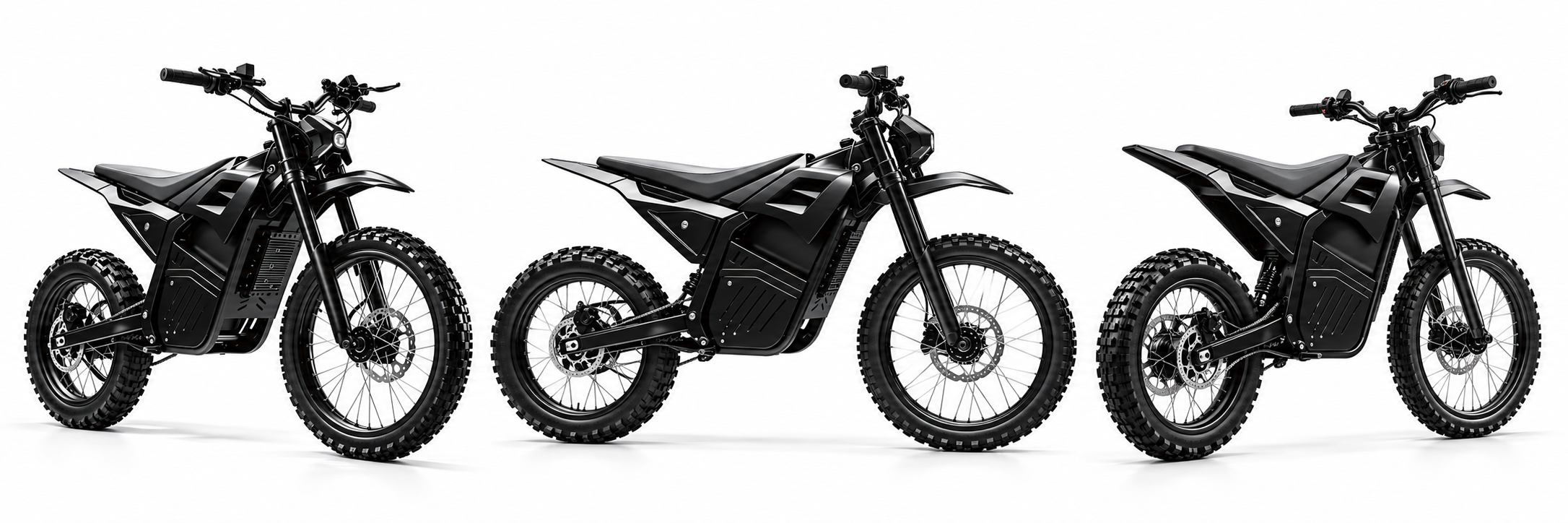

06 / ANGLE STUDIES
SHAPE & STANCE.
07 / THE DETAILS
FULL
SPECIFICATIONS.
Performance+
- Motor
- Mid-drive
- Rated / peak power
- 2,000 W / 6,000 W
- Range
- 60 km
- Maximum speed
- 70 km/h
- Torque
- 227 N·m
- Controller
- 52 V / 80 AB
- Climbing degree
- ≥60°
Battery+
- Battery
- 72 V 27 Ah, LG cells, removable
- Charging
- 5A / 6 h (CE mark shown on source sheet)
Features+
- Instrument
- K58 mid-mount color TFT
Brakes+
- Brakes
- Two-piston cast iron disc brakes
Dimensions+
- Net / gross weight
- 65 / 75 kg
- Tyres (front / rear)
- 70/100-19 / 90/100-17
- Packing size
- 1,520 × 382 × 760 mm
- Maximum load
- 150 kg
Published source-sheet values require final product-team confirmation; specifications can vary by market and version.

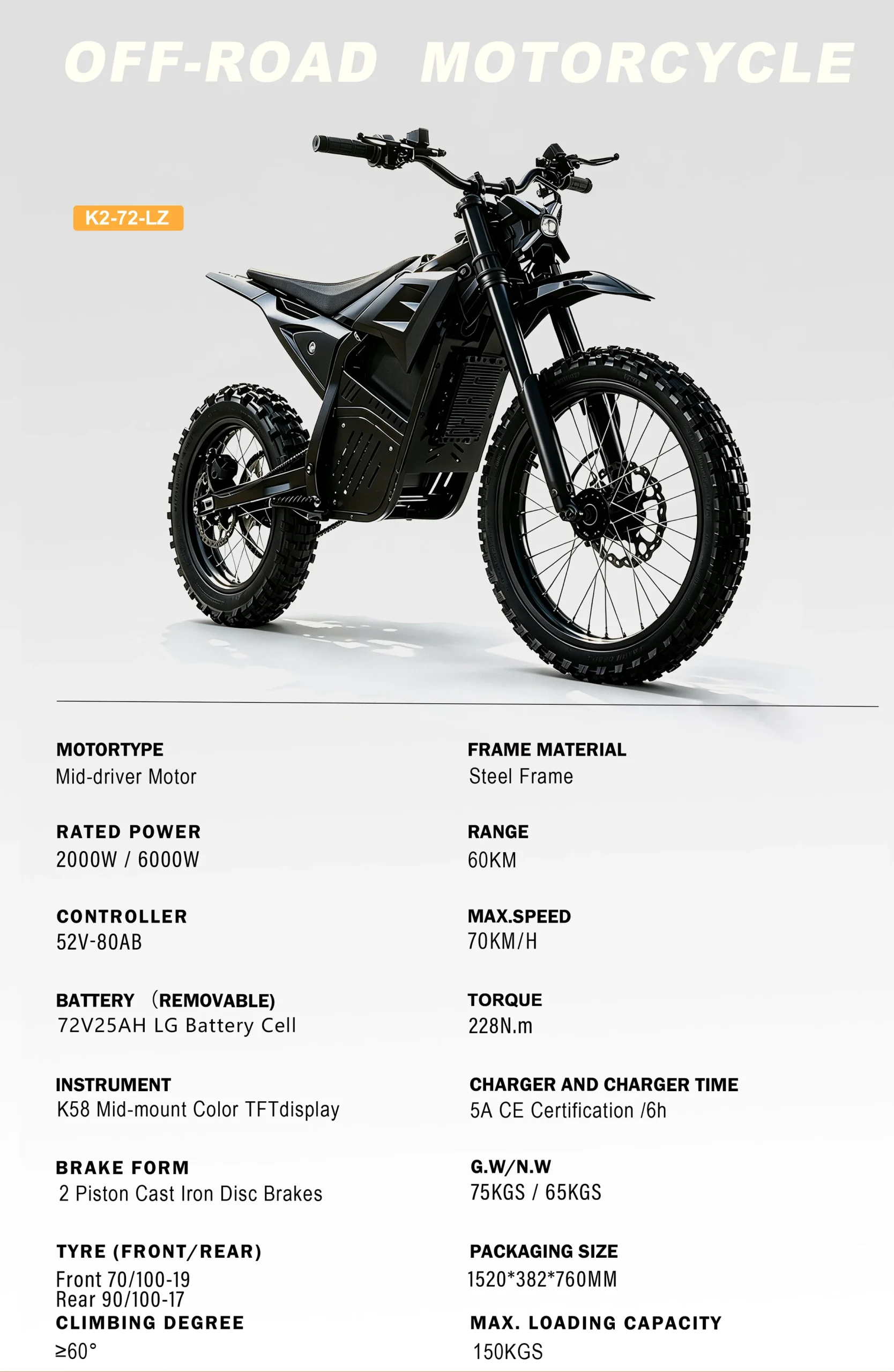

SOURCE MATERIALS
ORIGINAL SHEETS.
Reference images supplied for this SKU; confirm values before commercial use.
